ABB

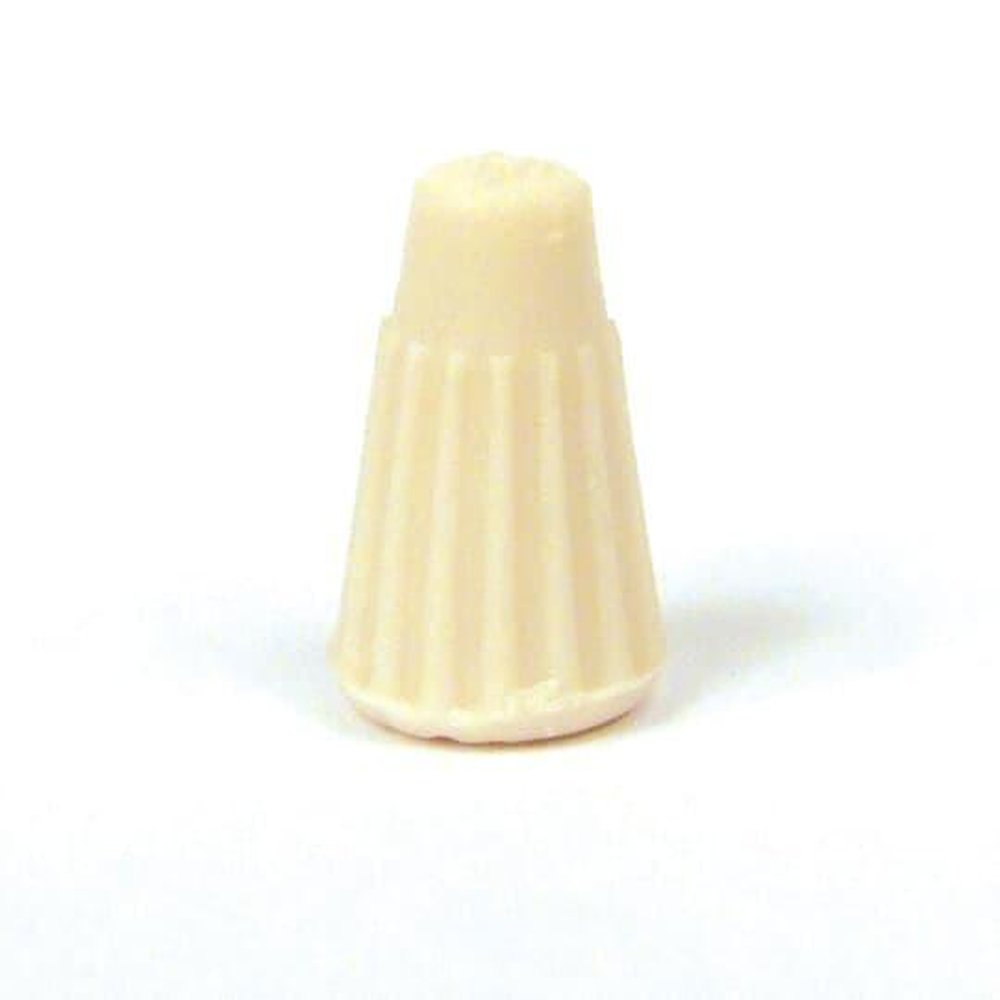

10-417 ITB PORCELIN WIRE NUT CERAMIC

Mouse over image to zoom, click to enlarge

Description: T&B® Wire Connector, High Temperature, Springless, Aluminum/Stranded Copper Wire, 18 to 14 AWG Wire, 300 V AC, 7/32 in Top Dia, >221 deg F, Porcelain, White, 13/32 in ID x 17/32 in OD x 27/32 in L

Manufacturer PN: 10-417

UPC:  78378610417

Kendall Electric Inc PN: 39078

Invoice Description:

10-417 ITB PORCELIN WIRE NUT CERAMIC


SPEC SHEET

▸ See All in Twist-On Connectors


How Can We Make This Page Better?

T&B® 10-417 High Temperature Wire Connector, Springless Spring, 18 to 14 AWG Aluminum/Stranded Copper Wire, Porcelain

Log In for Pricing and Availability




Description

Catamount® offers durable, value priced performance for a variety of commercial and residential applications. The product line offers cable ties, wire connectors, application tools, wire pulling lubricants and more.
T&B® Wire Connector, High Temperature, Springless, Aluminum/Stranded Copper Wire, 18 to 14 AWG Wire, 300 V AC, 7/32 in Top Dia, >221 deg F, Porcelain, White, 13/32 in ID x 17/32 in OD x 27/32 in L

Specifications

 Application For high temperature applications over 105 dig C
 Brand Name Marrette®
 Color White
 Dimensions 13/32 in ID x 17/32 in OD x 27/32 in L
 Manufacturer Part Number 10-417
 Material Porcelain
 PART NUMBER KEYWORDS 10-417 ; 10417 ; 7TAA008610R0005 ; 10767885 ; 783786104178 ; 78378610417 ; 00783786104178 ; 5414363136071
 Specifications 7/32 in Top Dia
 Standards/Approvals UL E9809, CSA 6591 / UL E9809, CSA 6591
 Temperature Rating >221 deg F
 Type High Temperature
 Voltage Rating 300 V AC

Features

▪ Closely spaced groves for excellent twisting power
▪ Deep, wide throat ensures full insulation coverage
▪ Funneled entry helps wires into threaded compression compartment
▪ Springless inner surface of cap threaded to secure conductors with the same efficiency as a spring
▪ For high temperature furnace/oven or other intense heat applications up to 645 deg C
▪ Excellent grip
▪ (2) 18 AWG to (4) 16 AWG wire combinations
▪ Three sizes accommodate 18 to 14 AWG stranded copper
