Hubbell

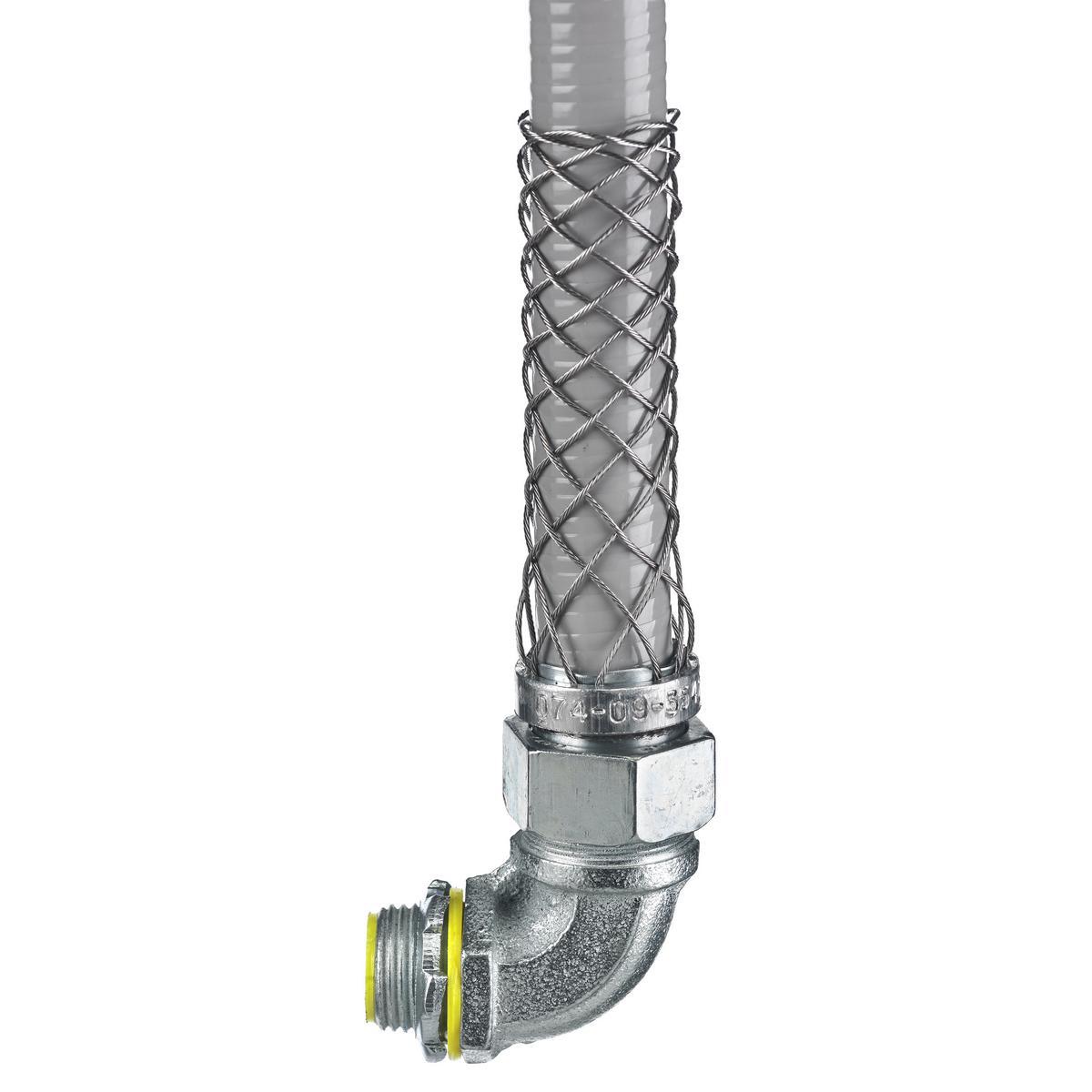

074093542 HUB SEALTITE GRIPS 78358533198

Mouse over image to zoom, click to enlarge

  • 074093542 HUB SEALTITE GRIPS 78358533198
  • 074093542 HUB SEALTITE GRIPS 78358533198

Description: Hubbell Wiring Device-Kellems, 074093542, Liquidtight Connector, Insulated Male Metallic, 1/2 in Trade, Cable Openings: 3-1/2 in, 90 deg Angle, 0.57 in Throat, For Use With: PolyTuff® Non-Metallic and Liquidtight Flexible Metal Conduit, Steel, Zinc Plated, 1.188 in W Dimensions

Manufacturer PN: 074093542

UPC:  78358533198

Kendall Electric Inc PN: 2146660

Invoice Description:

074093542 HUB SEALTITE GRIPS 78358533198


SPEC SHEET

▸ See All in Liquidtight Conduit Grips


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems 074093542 Insulated Male Metallic Liquidtight Connector, 1/2 in Trade, 3-1/2 in Cable Openings, Steel, Zinc Plated

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Kellems® liquid tight, flexible metal conduit grips are offered with high quality Hubbell® plated steel fittings in a wide variety of NPT sizes and configurations, either insulated or non insulated. The addition of a stainless steel mesh to these fittings makes them stronger than the conduit itself. Kellems® conduit grips helps prevent conduit pull out from the connecting fitting that is subject to stress, pull tension, vibration, motion or strain. They promote safe electrical systems and reduce equipment downtime.
Hubbell Wiring Device-Kellems, 074093542, Liquidtight Connector, Insulated Male Metallic, 1/2 in Trade, Cable Openings: 3-1/2 in, 90 deg Angle, 0.57 in Throat, For Use With: PolyTuff® Non-Metallic and Liquidtight Flexible Metal Conduit, Steel, Zinc Plated, 1.188 in W Dimensions

Specifications

 Application Machine Tools, Motors, Molding Equipment, Transformers, Weaving and Paper Machines, Fans, Lighting, Bakeries, Breweries, Food Processing, Chemical Plants, Dairies, Mines and Hazardous Location Applications
 Brand Name Hubbell Wiring Device-Kellems
 Cable Openings 3-1/2 in
 Color Metallic
 Dimensions 1.188 in W
 Finish Zinc Plated
 Includes Stainless Steel Mesh
 Manufacturer Part Number 074093542
 Material Steel
 Standards/Approvals UL 898D/899D|CSA Certified|Hazardous Location per, Class I, Division 2, Class II, Division 1/2, Class III, Division 1/2|UL 94 HB/94 V-2 Flammability Rating
 Suitable For Use With PolyTuff® Non-Metallic and Liquidtight Flexible Metal Conduit
 Throat Size 0.57 in
 Trade Size 1/2 in
 Type Insulated Male Metallic
 Video Links

Features

▪ Helps to prevent conduit pull-out and damage at fitting
▪ -30 to 225 deg F operating temperature
▪ 0.57 in Dia throat
▪ Suitable for use in wet locations when a listed sealing ring is used between box and fitting
▪ Reduces equipment downtime

Resources

 Catalog
 Catalog Page
 Full Engineering Drawing
 Line Drawing
 Line Drawing URL
 MSDS URL None Required
 Product Data Sheet
 Tech Drawing URL
