Rees

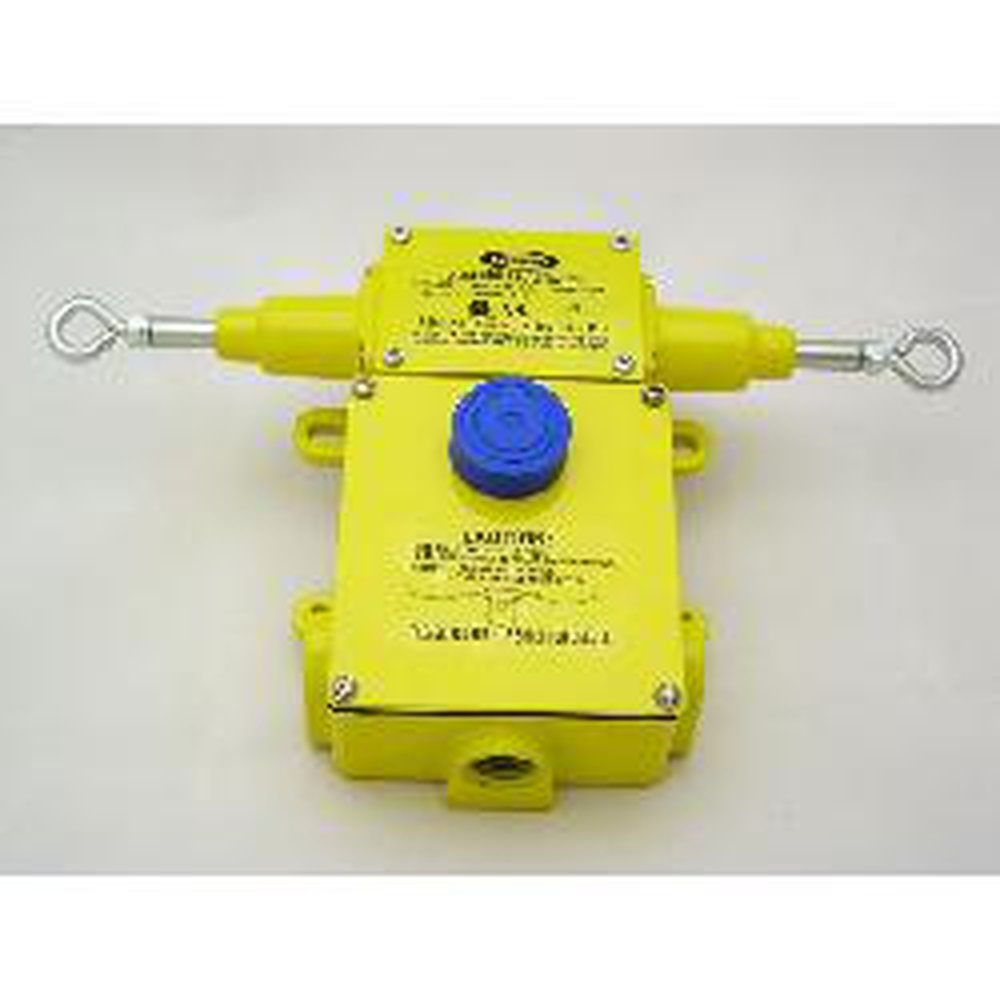

04964-204 REES Bi-DIRECTIONAL CABLE OPERATED SWITCH W/REST TRIP FORCE: 52lbs (23.6kg) 2NO+2NC, NEMA 12/13, IP 65

Mouse over image to zoom, click to enlarge

  • 04964-204 REES Bi-DIRECTIONAL CABLE OPERATED SWITCH W/REST TRIP FORCE: 52lbs (23.6kg) 2NO+2NC, NEMA 12/13, IP 65
  • 04964-204 REES Bi-DIRECTIONAL CABLE OPERATED SWITCH W/REST TRIP FORCE: 52lbs (23.6kg) 2NO+2NC, NEMA 12/13, IP 65

Description: REES Cable Operated Switch, Heavy Duty Manual Reset Slack, 2NO-2NC Contact Configuration, 6/1.2 A at 110 to 600 V AC, 2.2/1.1 A at 115 to 250 V DC Contact, NEMA 12/13/IP65 Enclosure, 14 AWG Stranded Wire Terminal, 0 to 55 deg C, Aluminum, 11.2 in L x 7.5 in W x 2.465 in H Dimensions

Manufacturer PN: 04964-204

UPC:  64867164204

Kendall Electric Inc PN: 2453680

Invoice Description:

04964-204 REES Bi-DIRECTIONAL CABLE OPERATED SWITCH W/REST TRIP FORCE: 52lbs (23.6kg) 2NO+2NC, NEMA 12/13, IP 65


SPEC SHEET

▸ See All in Cable Pull Switches


How Can We Make This Page Better?

REES 04964-204 Heavy Duty Manual Reset Slack Cable Operated Switch, 2NO-2NC Contact

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

REES Cable Operated Switch, Heavy Duty Manual Reset Slack, 2NO-2NC Contact Configuration, 6/1.2 A at 110 to 600 V AC, 2.2/1.1 A at 115 to 250 V DC Contact, NEMA 12/13/IP65 Enclosure, 14 AWG Stranded Wire Terminal, 0 to 55 deg C, Aluminum, 11.2 in L x 7.5 in W x 2.465 in H Dimensions

Specifications

 Application For process applications such as conveyors, transfer machines or assembly lines within the automotive, machine tool, foundry and pharmaceutical industries this switch provides a constant access for emergency or normal stopping
 Brand Name REES
 Contact Configuration 2NO-2NC
 Contact Rating 6/1.2 A at 110 to 600 V AC, 2.2/1.1 A at 115 to 250 V DC
 Dimensions 11.2 in L x 7.5 in W x 2.465 in H
 Enclosure NEMA 12/13/IP65
 Includes Gasket Which Provides an Oil Tight Seal Upon Installation
 Manufacturer Part Number 04964-204
 Material Aluminum
 PART NUMBER KEYWORDS 04964-204 ; 04964204 ; 648671642046 ; 64867164204 ; 00648671642046
 Standards/Approvals CE Certified|CSA C22.2 File No. LR3648|Demko File No. D-01496-M1|IEC/EN 60947-5-1|UL File No. E 58589/508
 Temperature Rating 0 to 55 deg C
 Terminal Type 14 AWG Stranded Wire
 Type Heavy Duty Manual Reset Slack

Features

▪ 60, 30, 15, 12 A inrush current
▪ 52 lb trip force
▪ -40 to 85 deg C storage temperature
▪ Neoprene rubber gasket
▪ 6 A/1.2 A at 110 to 120/550 to 600 VAC, 2.2 A/1.1 A at 115 to 125/230 to 250 VDC
▪ Slack cable style, bi-directional switch
▪ The housing is made from high quality die cast aluminum and powder coat painted yellow. the covers are made from aluminum and also powder coat painted yellow
▪ Manual reset
▪ Gold plated contacts eliminate high resistance tarnishing
▪ There are three 1/2 in NPT conduit openings
▪ The maximum cable recommended cable length is 200 ft on each end with a maximum interval support of 10 ft
▪ The mechanical life of the switch is 250000 operations
▪ A600/N300 heavy duty rating
▪ Operating temperatures at 0 deg C are based on the absence of freezing moisture and liquids
