Rees

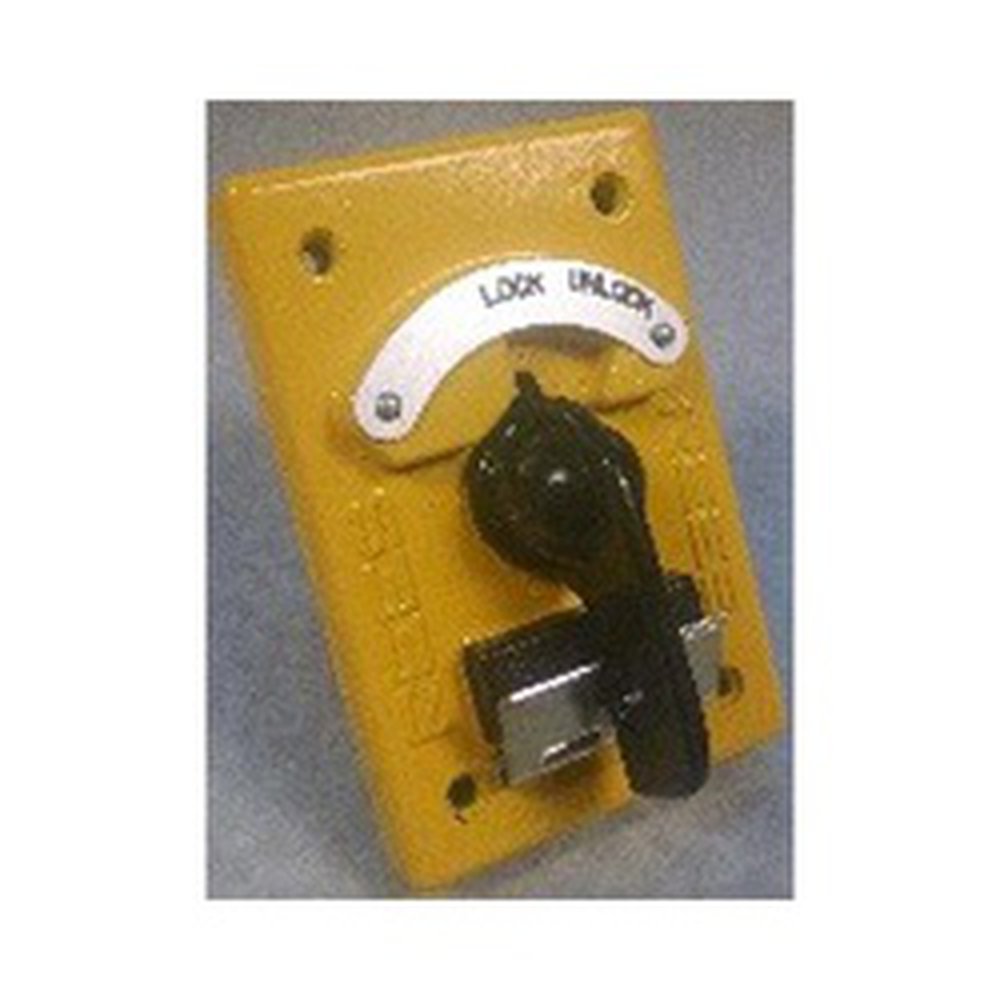

04910-125 REES SELECTOR SWITCH,REES,ROTARY CNT,2 STEPS,4 POLES,0 TO +55 DEG C OPERATING,YEL 64867110126

Mouse over image to zoom, click to enlarge

  • 04910-125 REES SELECTOR SWITCH,REES,ROTARY CNT,2 STEPS,4 POLES,0 TO +55 DEG C OPERATING,YEL 64867110126
  • 04910-125 REES SELECTOR SWITCH,REES,ROTARY CNT,2 STEPS,4 POLES,0 TO +55 DEG C OPERATING,YEL 64867110126

Description: REES Rotary Contact Selector Switch, Maintained Contact Mode, 6 A at 110/120 V AC/2.2 A at 115/125 V DC Contact, Long Lever Operator, 2 Positions, Die Cast Zinc, Dry Powder Coated, Yellow, Environmental Conditions: 0 to 55 deg C Operating Temperature, -40 to 85 Storage Temperature

Manufacturer PN: 04910-125

UPC:  64867110126

Kendall Electric Inc PN: 2934462

Invoice Description:

04910-125 REES SELECTOR SWITCH,REES,ROTARY CNT,2 STEPS,4 POLES,0 TO +55 DEG C OPERATING,YEL 64867110126


SPEC SHEET

▸ See All in Non-Illuminated Selector Switches


How Can We Make This Page Better?

REES 04910-125 Rotary Contact Selector Switch, Long Lever Operator, Yellow

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

REES Rotary Contact Selector Switch, Maintained Contact Mode, 6 A at 110/120 V AC/2.2 A at 115/125 V DC Contact, Long Lever Operator, 2 Positions, Die Cast Zinc, Dry Powder Coated, Yellow, Environmental Conditions: 0 to 55 deg C Operating Temperature, -40 to 85 Storage Temperature

Specifications

 Brand Name REES
 Color Yellow
 Contact Rating 6 A at 110/120 V AC/2.2 A at 115/125 V DC
 Environmental Conditions 0 to 55 deg C Operating Temperature, -40 to 85 Storage Temperature
 Finish Dry Powder Coated
 Manufacturer Part Number 04910-125
 Material Die Cast Zinc
 Number of Positions 2
 PART NUMBER KEYWORDS 04910-125 ; 04910125 ; 648671101260 ; 64867110126 ; 00648671101260
 Standards/Approvals CSA C22.2 File No. LR3648|CE Certified|UL 508 File No. E58589

Features

▪ Center position lockable latch
▪ 14/2 AWG stranded wire
▪ Following switch is a hand operated, control circuit device, rated heavy duty normally for use with electromagnetic equipment
▪ The body and wing lever is made from die cast zinc and painted with a dry powder paint
▪ Each captive terminal will accept (2) 14 AWG stranded wires
▪ Each switch is supplied with all mounting hardware and a solid neoprene rubber gasket which provides an oil tight seal upon installation
▪ The mechanical life of this device is 500000 operations
▪ Its rugged construction and long term reliability make this switch extremely well suited to function within various industrial conditions
▪ #56 - 2-position/ 4-poles, maintained contact arrangement
▪ Operating temperatures at 0 deg C are based on the absence of freezing moisture and liquids
▪ 60 A, 30 A, 15 A, 12 A inrush current
