Rees

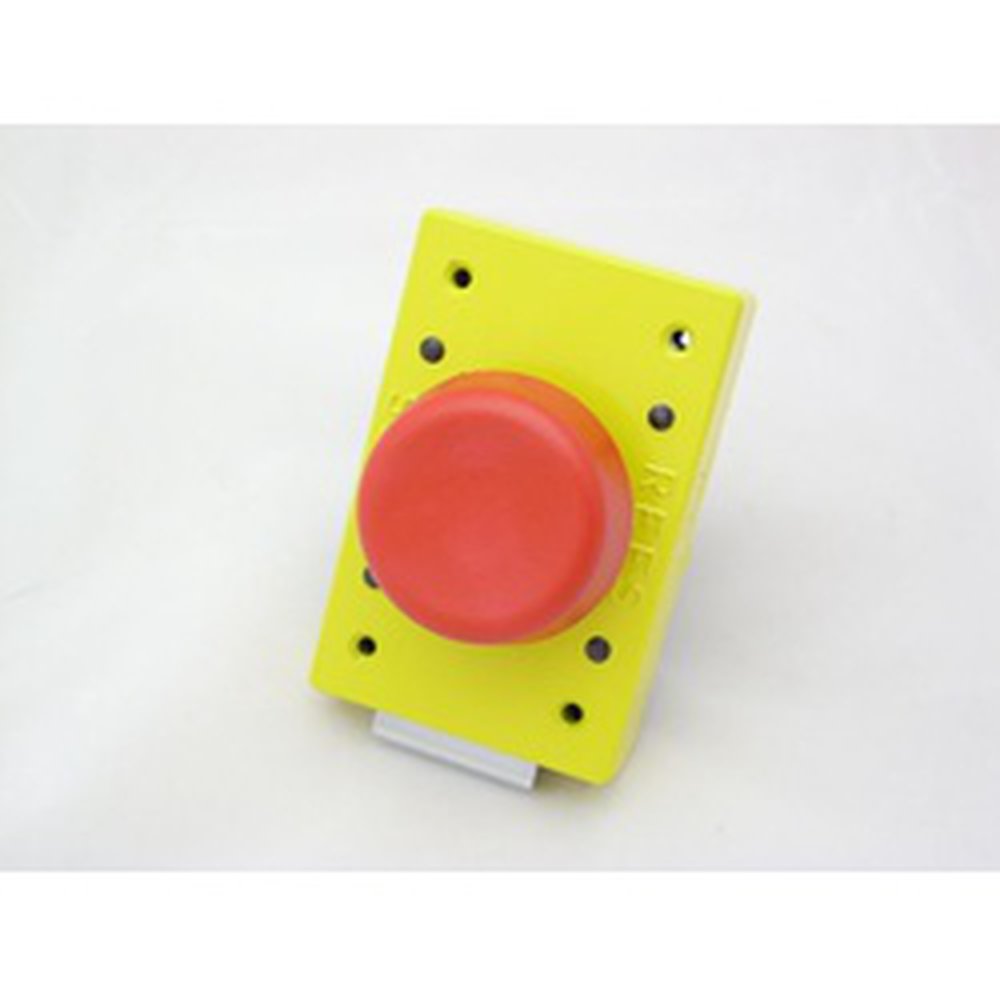

02650-102 REES 2-1/4 RED PB&LATCH

Mouse over image to zoom, click to enlarge

Description: REES Non-Illuminated Pushbutton Switch, 2-1/4 in, 2NC, Slow Make/Slow Break Contact, Momentary Contact Mode, Bezel/Housing: Die Cast Zinc, Mushroom Plunger, Screw, 14/2 AWG Stranded Terminal, NEMA 12/13/IP65, Dry Powder Coated, Red/Yellow, Environmental Conditions: 32 to 131 deg F

Manufacturer PN: 02650-102

UPC:  64867150102

Kendall Electric Inc PN: 2243556

Invoice Description:

02650-102 REES 2-1/4 RED PB&LATCH


SPEC SHEET

▸ See All in Non-Illuminated Pushbuttons


How Can We Make This Page Better?

REES 02650-102 Non-Illuminated Pushbutton Switch, 2-1/4 in, 2NC Contact, Slow Make/Slow Break Contact, Red/Yellow

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

REES Non-Illuminated Pushbutton Switch, 2-1/4 in, 2NC, Slow Make/Slow Break Contact, Momentary Contact Mode, Bezel/Housing: Die Cast Zinc, Mushroom Plunger, Screw, 14/2 AWG Stranded Terminal, NEMA 12/13/IP65, Dry Powder Coated, Red/Yellow, Environmental Conditions: 32 to 131 deg F

Specifications

 Actuator Mushroom Plunger
 Bezel Housing Die Cast Zinc
 Brand Name REES
 Color Red/Yellow
 Contact Configuration 2NC
 Contact Type Slow Make/Slow Break
 Enclosure NEMA 12/13/IP65
 Environmental Conditions 32 to 131 deg F
 Finish Dry Powder Coated
 Includes Spring Latch
 Manufacturer Part Number 02650-102
 PART NUMBER KEYWORDS 02650-102 ; 02650102 ; 648671501022 ; 64867150102 ; 00648671501022
 Size 2-1/4 in
 Standards/Approvals UL 508 E58589|CSA C22.2 File No. LR3648|IEC/EN 60947-5-1|OSHA Compliant|DEMKO File No. FI-17205
 Terminal Type Screw, 14/2 AWG Stranded

Features

▪ Hand operated, control circuit device, rated heavy duty normally for use with electromagnetic equipment
▪ The yellow cover is painted with a dry powder paint and made from die cast zinc
▪ The red mushroom plastic plunger is molded from DuPont Delrin® 100ST acetal for improved impact resistance and is solid color throughout
▪ Gold plated contacts eliminate high resistance tarnishing
▪ The mechanical life of the switch is 500000 operations
▪ A600/N300 heavy duty rating
▪ Positive opening contact
