ABB

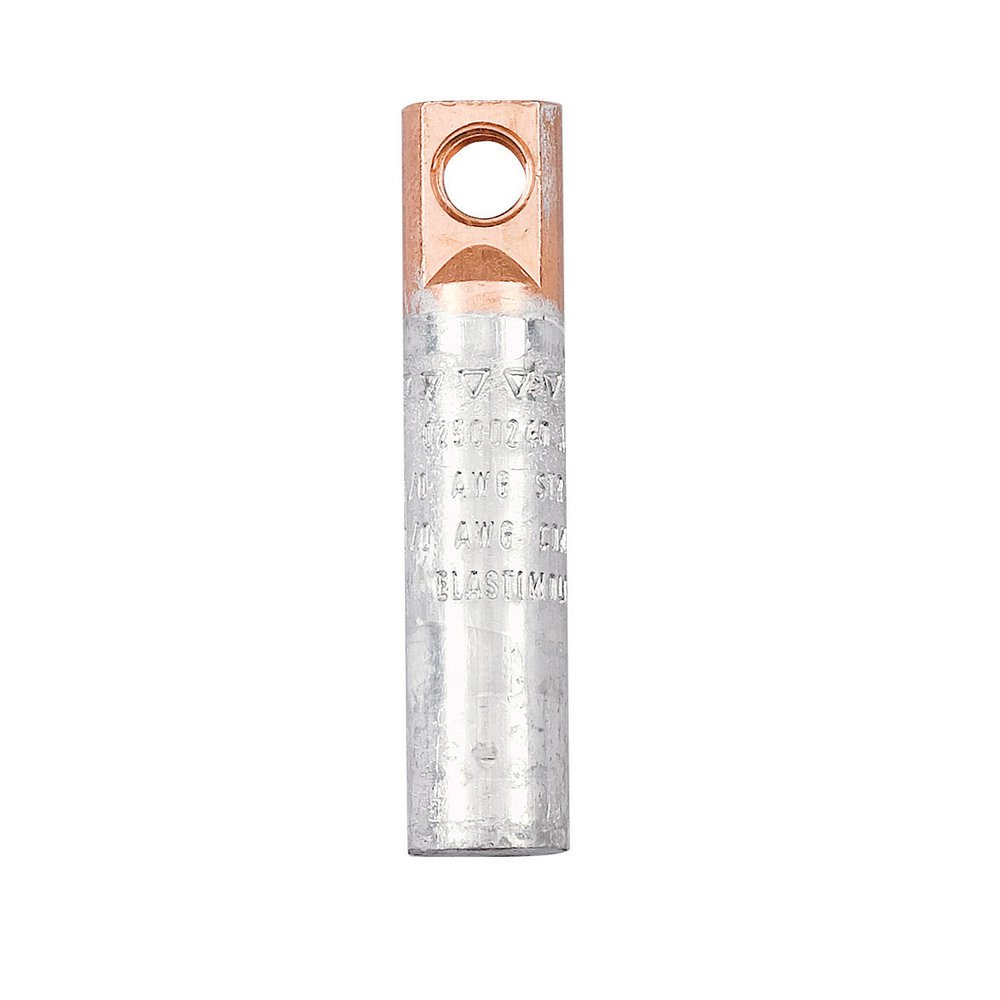

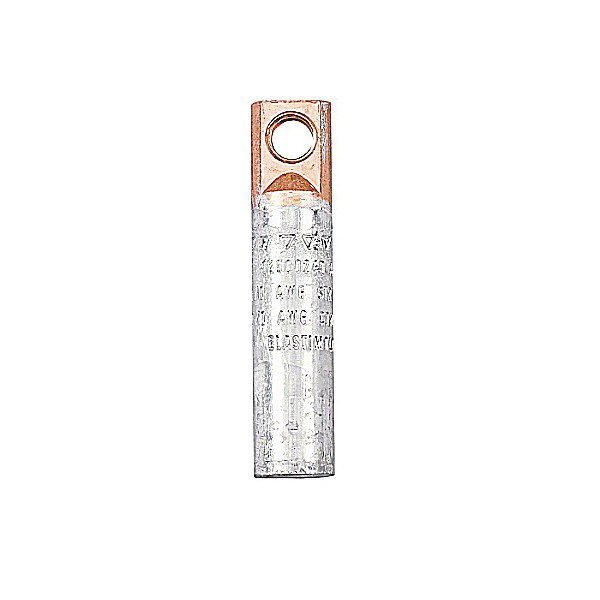

02500210 ELASTIMOLD #2 COMPACT 15-35KV 200A LOADBREAK LR LONG BI-METAL CONTACT

Mouse over image to zoom, click to enlarge

  • 02500210 ELASTIMOLD #2 COMPACT 15-35KV 200A LOADBREAK LR LONG BI-METAL CONTACT
  • 02500210 ELASTIMOLD #2 COMPACT 15-35KV 200A LOADBREAK LR LONG BI-METAL CONTACT

Description: Elastimold® Loadbreak Lug, Long, 15 to 35 kV, 200 A, 3 to 2 AWG Conductor, Compression, 1-Hole, 3/8 in Stud, -40 to 65 deg C, Aluminum/Copper, Bare, 0.63 in Dia x 2.88 in H

Manufacturer PN: 02500210

UPC:  78378665960

Kendall Electric Inc PN: 4365935

Invoice Description:

02500210 ELASTIMOLD #2 COMPACT 15-35KV 200A LOADBREAK LR LONG BI-METAL CONTACT


SPEC SHEET

▸ See All in Loadbreak Crimp Connectors


How Can We Make This Page Better?

Elastimold® 02500210 Long Loadbreak Lug, 15 to 35 kV, 200 A, 3 to 2 AWG Conductor, Aluminum/Copper

Log In for Pricing and Availability




Description

Load break connectors and accessories provide a convenient method to connect/disconnect cable and equipment on power distribution systems. Load break elbows include provisions for energized operation using standard hotstick tools, allowing load make/break operation and a visible disconnect. Components can be isolated with insulated caps, plugs and parking bushings. Optional accessories allow system grounding, testing, bypass, lightning surge protection and current limiting fusing. Additional connecting points and taps can be provided by use of junctions or feed-thrus.
Elastimold® Loadbreak Lug, Long, 15 to 35 kV, 200 A, 3 to 2 AWG Conductor, Compression, 1-Hole, 3/8 in Stud, -40 to 65 deg C, Aluminum/Copper, Bare, 0.63 in Dia x 2.88 in H

Specifications

 Amperage Rating 200 A
 Application For providing convenient method to connect/disconnect cable and equipment on power distribution systems
 Brand Name Elastimold®
 Color Bare
 Conductor Size 3 to 2 AWG
 Connection Type Compression
 Dimensions 0.63 in Dia x 2.88 in H
 Manufacturer Part Number 02500210
 Material Aluminum/Copper
 PART NUMBER KEYWORDS 02500210 ; 7TAA121010R0037 ; 11880598 ; 783786659609 ; 78378665960 ; 00783786659609
 Specifications 1-Hole, 3/8 in Stud, -40 to 65 deg C
 Standards/Approvals IEEE 386
 Type Long
 Voltage Rating 15 to 35 kV

Features

▪ Compressed stranded/compacted solid bi-metal conductor
▪ Long sleeve form
▪ Must be protected/installed into elbow connector, repair elbow connector or replacement elbow
▪ For 167/168RLR and 273/274RLR replacement elbows on aluminum or copper conductors
▪ 1/0 AWG stranded, 2/0 AWG solid conductors
